100T Hot Sale C-frame Hydraulic Press Machine

Product model：Yz41

Product number：13

Feature：

Movable Table, Displacement Sensor, Knocking Device, Mould Exchanging Trolley, Cooling Device, Cushion Device, Photo-electric Safety Device System Oil Heating Device, Industrial Touch Screen, Automati

Details

SINGLE ARM HYDRAULIC PRESS

Yz41Series

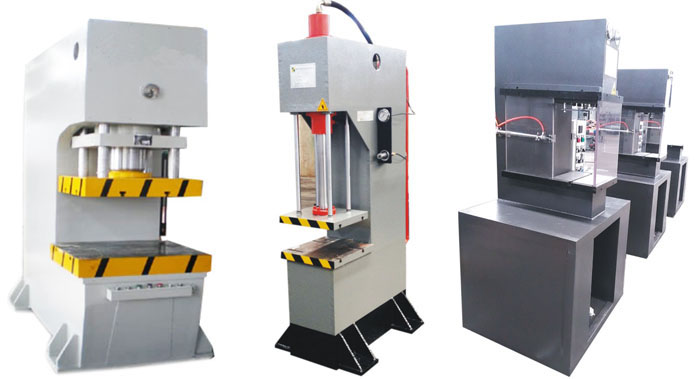

MACHINE APPEARANCE

PRESSING PROCESS DIAGRAM

DATA SHEET

Parameter		unit	1T	1.6T	2.5T	4T	6.3T	10T	16T	25T	40T	63T	100T	160T	250T
Nominal Force		KN	10	16	25	40	63	100	160	250	400	630	1000	1600	2500
Max working pressure of liquid		MPA	5.5	5.1	5.5	5.6	6.28	8.1	13	20.3	22.6	16.5	26.5	25	25
Max. daylight		mm	300	300	350	390	400	500	500	550	600	630	800	1000	1000
Max. stroke		mm	120	160	160	200	250	300	350	350	400	500	500	500	500
Slider speed	Down	mm/s	60	45	50	50	50	50	50	50	50	50	36	24	23
Slider speed	Return	mm/s	82	90	110	110	100	100	115	115	110	98	98	65	65
Throat deep		mm	100	100	100	100	100	120	120	150	150	175	200	220	250
Table size	front-back	mm	200	200	200	200	200	250	250	300	300	350	400	450	500
Table size	left-right	mm	300	300	300	300	300	300	350	400	400	500	600	600	700
The workbench high from the ground		mm	desk type	700	700	710	700	700	710	710	650	650	730	750	710
Blanking hole diameter		mm		70	70	70	80	80	100	100	100	140	140	200	200
Motor power		kw	1.1	1.5	1.5	1.5	2.2	4	4	4	5.5	7.5	8.5	11	15
Overall dimensions	Front-back	mm	500	500	500	500	500	650	650	800	900	1200	1300	1300	1400
	Left-right	mm	400	400	400	400	400	500	550	600	600	700	900	900	1000
	Height	mm	1450	1450	1450	1600	1600	1800	1900	2200	2500	2500	2500	2900	3200

OPTIONAL ACCESSARIES

ACCESSARIES BRAND
