Mrel Elbow Pipe Extrusion Hydraulic Press

Product model：Yz61

Product number：38

Feature：

slide proportional speed system, blanking buffer device, hydraulic plate proportional system, photoelectric protective device, cooling device, die protect device, displacement transducer, industrial t

Details

BEND AND PIPES HYDRAULIC PRESS

Yz61 Series

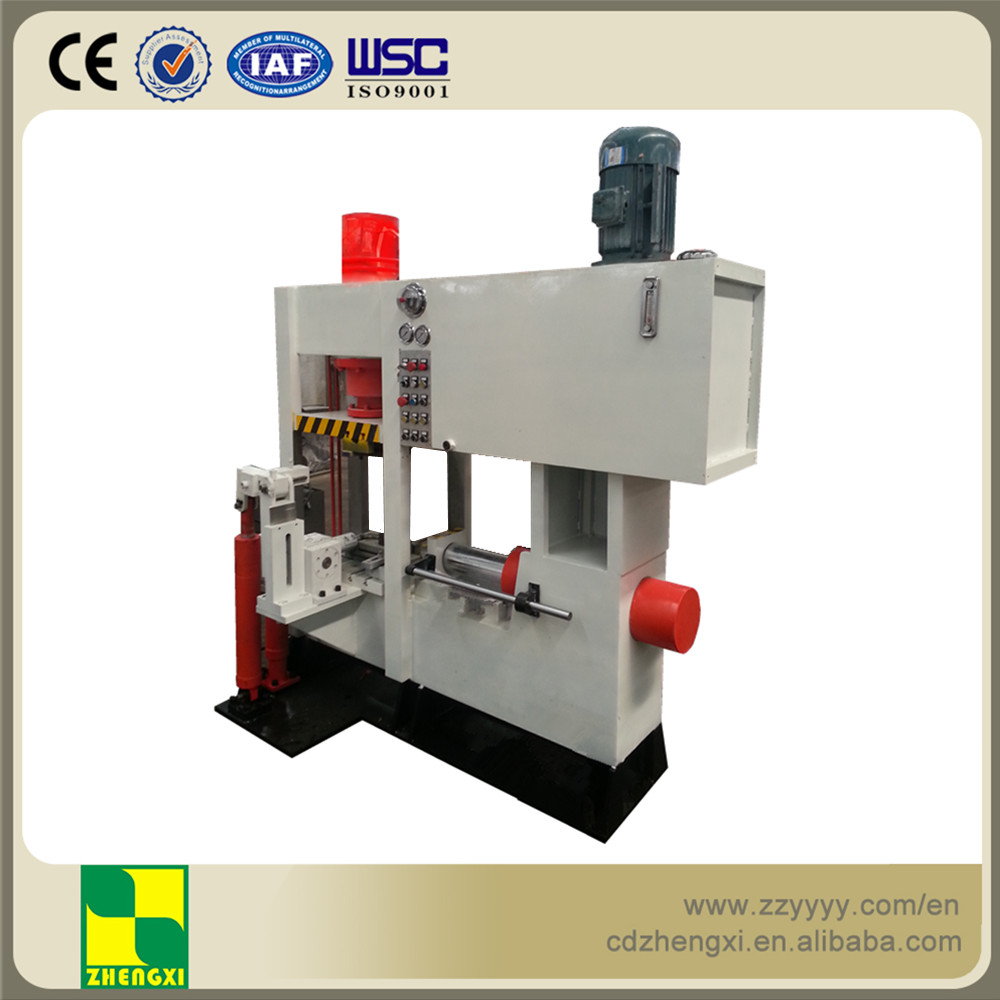

MACHINE APPEARANCE

DATA SHEET

Model	Yz61-120T	Yz61-400T	Yz61-800T	Yz61-1000T
Clamping Force	1200KN	4000KN	8000KN	10000KN
Side Force	1000KN	2000KN	3500KN	5000KN
Lidquid Force	28Mpa	28Mpa	28Mpa	28Mpa
Bends	1-4 inches	4-8 inches	6-12 inches	12-16 inches

CHARACTERISTICS

This series press use for the production of bend and connectors, the press is design for the market needs small radius bend, can produce radius of 1-1.5D bend. Bend press technology is introduction from Germany, can produce products reach GB standard, has production capacity from 100T to 4000T.

OPTIONAL DIAGRAM
